LOOP STEAMER
Basics
The new Loop Steamer MODUS, for printed textiles, and MODUS MIDI, for digital printed textiles. These high quality Loop Steamers with THERMOCURE technology, enables to obtain excellent quality of finishing results in brilliant colors while saving a lot of energy.
- Working widths: 2000, 2600, 3000, 3400 mm.
- For single web or double strand operation
- For various fibres and dyestuffs
- Low steam consumption
- Simple handling and easy maintanance
The Modus Loop Steamer renders the following applications:
- Saturated steam modus (102°C to 105°C)
- Superheated steam modus (160°C to 180°C)
- Hot air polymerizing modus (160°C to 180°C)
Steaming Machines
All machine lines are adapted, designed and manufactured according to our customer’s individual requirements.

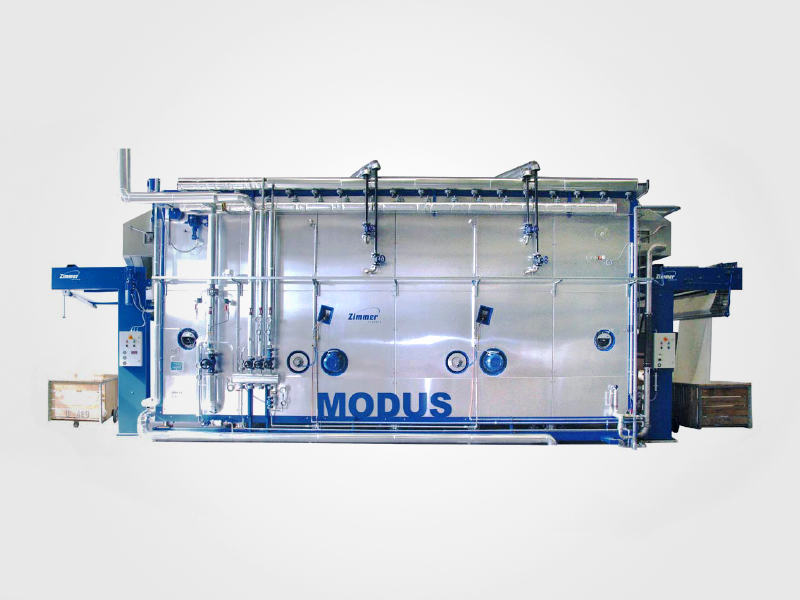

LOOP STEAMER MODUS
- Working widths: 2000, 2600, 3000, 3400 mm
- Superheating Capacity: 140 KW per zone
- For any kind of printed textiles
- Loop length: 800-2800 mm
- Number of Zones: 1-4
- Cloth capacity: up to 440 m
- Length: up to 13000 mm
- Max. Mechanical Speed: 25-70 m/min
- Average Steam Consumption: 200-1400 kg/h

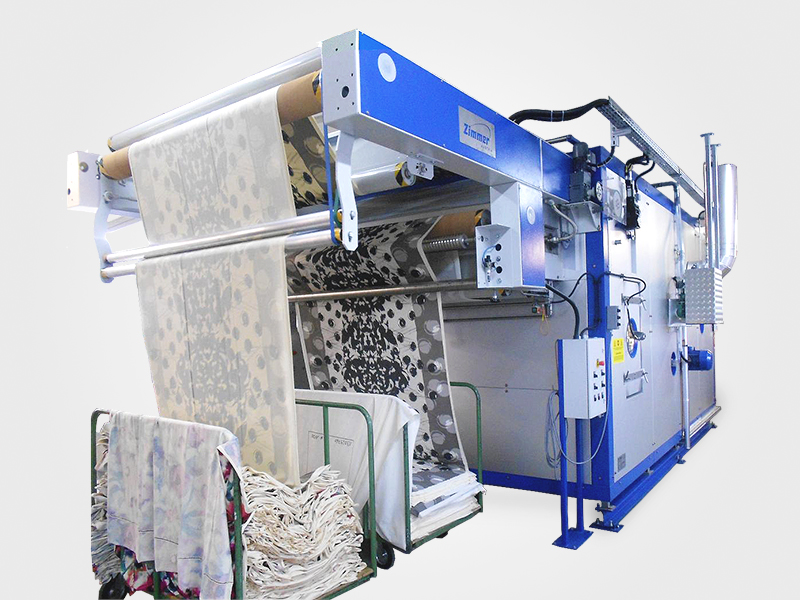

LOOP STEAMER MODUS MIDI
- Optimal for digital printed textiles
- Working widths: 2000, 2600, 3000, 3400 mm
- Superheating Capacity: 140 KW per zone
- Loop length: 500-1800 mm
- Number of Zones: 1
- Cloth capacity: up to 80 m
- Length: up to 5500 mm
- Max. Mechanical Speed: 25 m/min
- Average Steam Consumption: 200-400 kg/h
Applications
For any printed or digital printed textile fabric. Fibres such as cottonviscose, nylon, polyester, silk or wool.
