ROTARY.SCREEN Printing
ROTASCREEN textile printing machines with ZIMMER MAGNET SYSTEM PLUS are designed in modular constructions, for a wide range of applications. It ensures high quality results with single- or multi-color printing on different substrates such as home textiles, fashion, technical textiles, wall covering and many more.
ROTASCREEN is the most cost effective method for high quality mass production with fastest printing speeds of up to 120 m/min. Take advantages of our pioneering technologies like the world-famous ZIMMER MAGNET SYSTEM PLUS ROLL ROD TECHNOLOGY, which combines the advantages of the revolutionarily Magnet System with the traditional Blade technique. It guarantees an uniform application over the complete working width without any left-centre-right variations.
Printing Machines
All machine lines are adapted, designed and manufactured according to our customer’s individual needs.

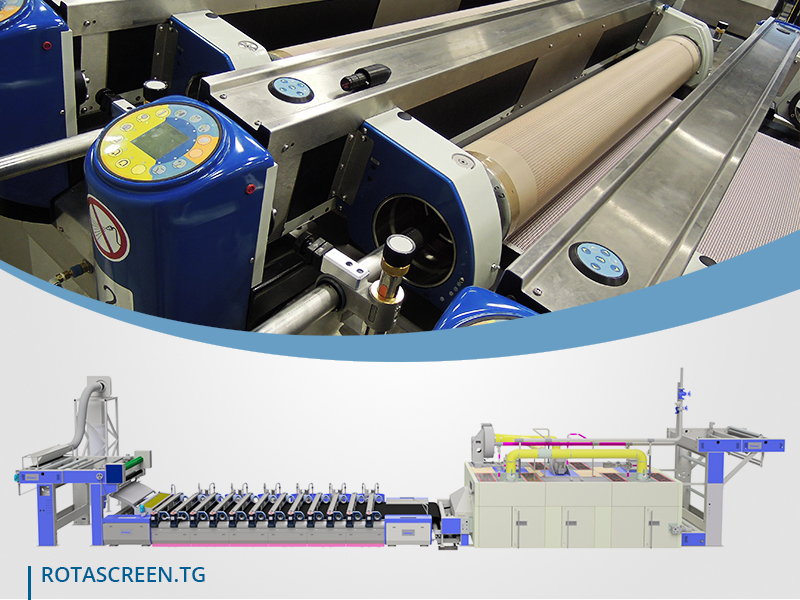

ROTASCREEN.TG - Closed Bearing System
- Compact and solid construction
- Closed bearing printhead type G with squeegee holder RH-ECO-G (standard execution)
- Printing width: 165/185/225/250/285/330 cm
- Up to 24 printing stations
- Individual width adjustment of both printing heads.
- ACR-5-control system, permits easy handling, short set-up time, automatic repeat setting, design memory and quick reproduction of re-orders
- Automatic repeat adjustment from 64 to 102 cm.
- Digital synchronisation - guarantees high printing accuracy at any printing speed up to 120 m/min.

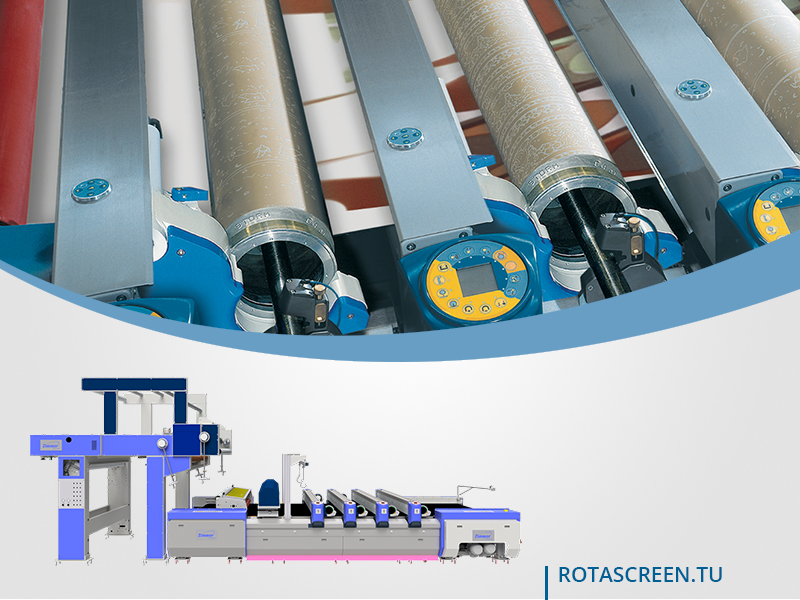

ROTASCREEN.TU - Open Bearing System
- Fast, safe handling and set-up of the screens together with the color pipes during design changes.
- Open bearing printhead type U with squeegee holder RH-ECO-U (standard execution)
- Printing width: 165/185/225/250/285/330 cm
- Up to 24 printing stations.
- Individual width adjustment of both printing heads.
- ACR-5-control system, permits easy handling, short set-up time, automatic repeat setting, design memory and quick reproduction of re-orders
- Automatic repeat adjustment from 64 to 102 cm.
- Digital synchronisation - guarantees high printing accuracy at any printing speed up to 120 m/min.

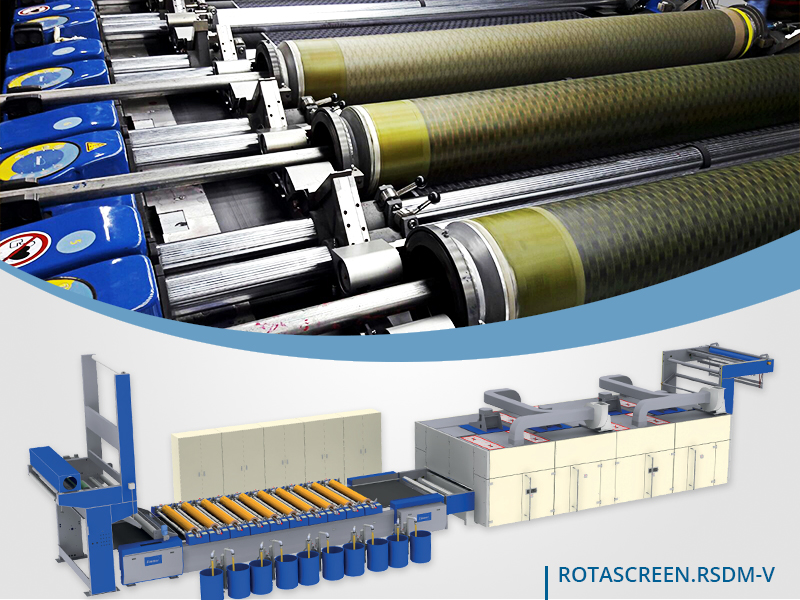

ROTASCREEN.RSDM-V - Open Bearing System
- RSDM-V open screen bearing printing head with digital operating panel and repeat navigator for a perfect pre- and fine-adjustment of the repeat size from 64 to 120 cm
- Touchscreen operating panel supports any required language
- Color pipe holder with pneumatic fixation for fast and save set-up of the screen together with the color pipe
- Printing width: 165/185/225/250/285/330 cm
- Up to 24 printing stations.
- ACR-5-control system, permits easy handling, short set-up time, automatic repeat setting, design memory and quick reproduction of re-orders
- Digital synchronisation - guarantees high printing accuracy at any printing speed up to 120 m/min.

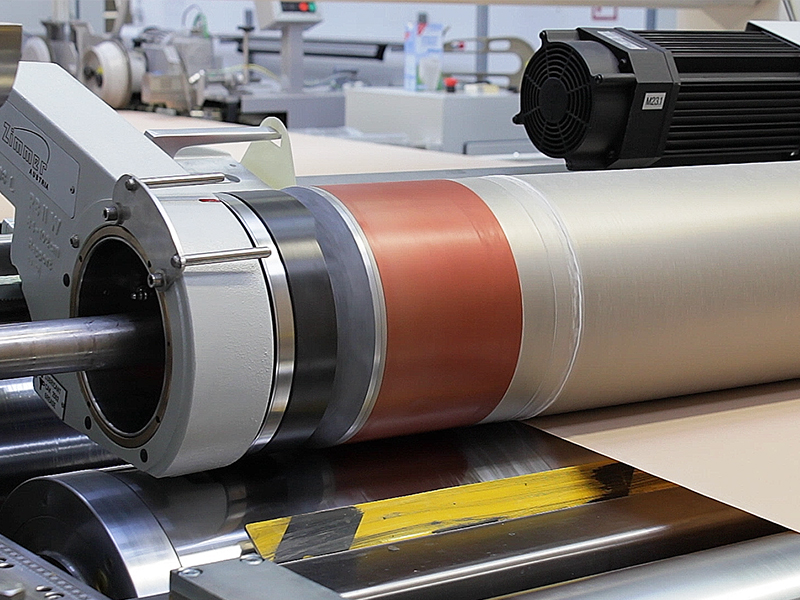

MAGNOROLL.RS
- MAGNOROLL rotary screen station for paste or foam application with the famous ZIMMER MAGNET SYSTEM roll rods.
- The MAGNOROLL coating and printing machine can optionally be equipped with two rotary screens for simultaneous application.
- Individual width adjustment of both print heads allow narrow printing on any wider machine.
- Available in working width from 500 mm to 3200 mm and repeat size of 640 mm to 914 mm.

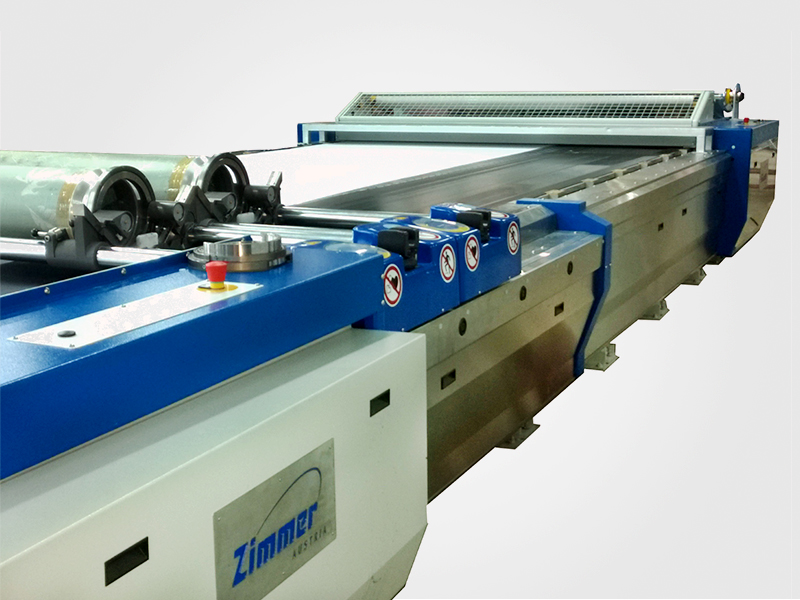

MIDI-II-R – Sample Printing Machine
- Rotascreen machine accessory for closed or open bearing systems.
- Same printing width as production machines for real-size sample printing
- Printing width: 165/185/225/250/285/330 cm.
- Printing length: 9.5/11.5/13.7/15.9/18.9/20.3/22.4/24.6/26.8/29/32 meters.
MINI-MD-R – Strike-Off Machine
- Rotascreen machine accessory (also available for flat screen printing, MINI-MD-F)
- Used for the development and verification of paste viscosities, colour concentration and magnet power fine adjustment.
- MINI-MD strike off-machines are available in size 60x70 or 60x128 cms.
Applications
Home Textiles, Fashion, Technical Textiles, Wall Covering, Transfer Paper, Glass Fibre, Upholstery, ...
